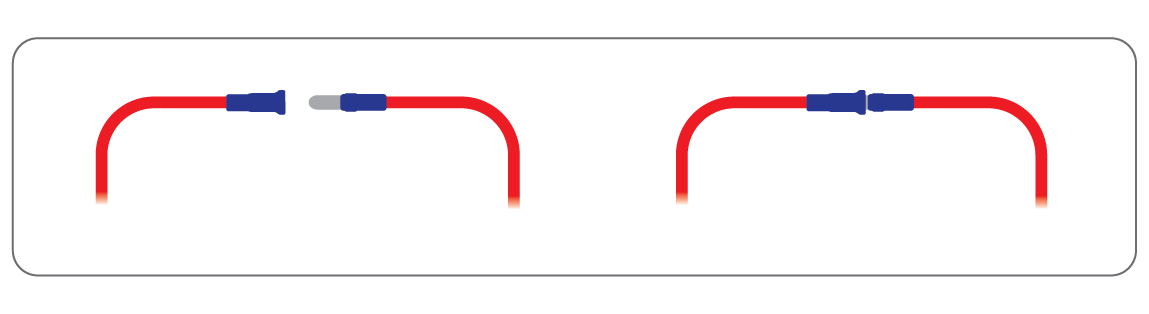

Bullet connectors are supplied attached to the controller's wires and to the additional wires in the kit. We suggest that these connections are used when wiring the controller. Other connections (such as tying and taping the wires) may not be as reliable.
Always wire the controller according to the diagrams and instructions. Failure to do so could result in damage to the unit.

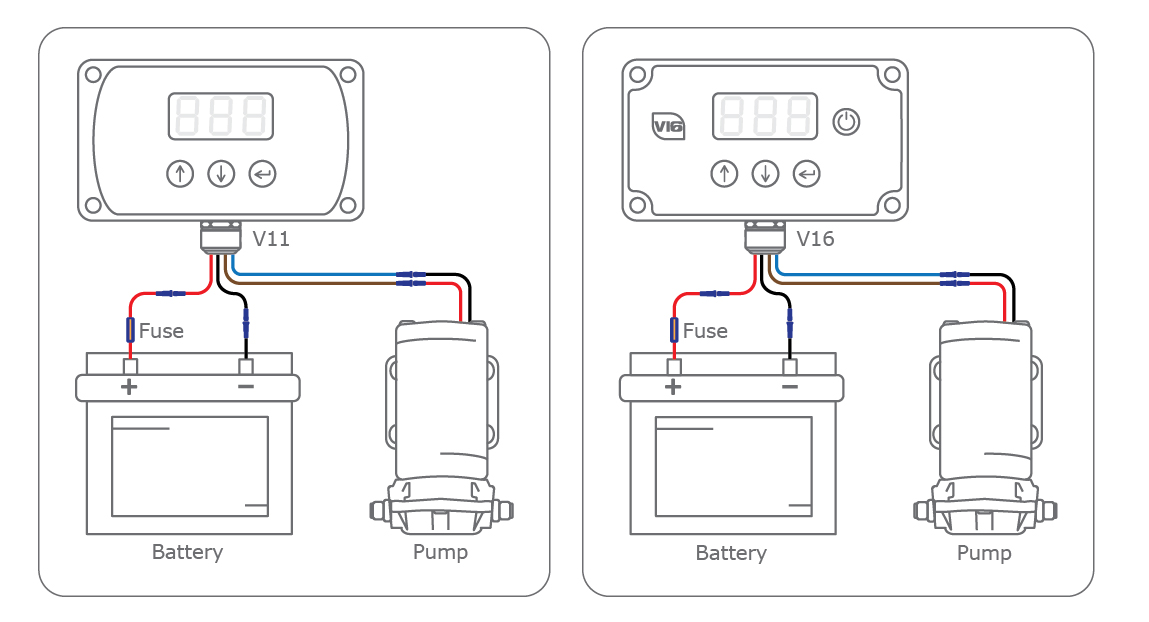

The V11 controller connections: The V16 controller connections:
